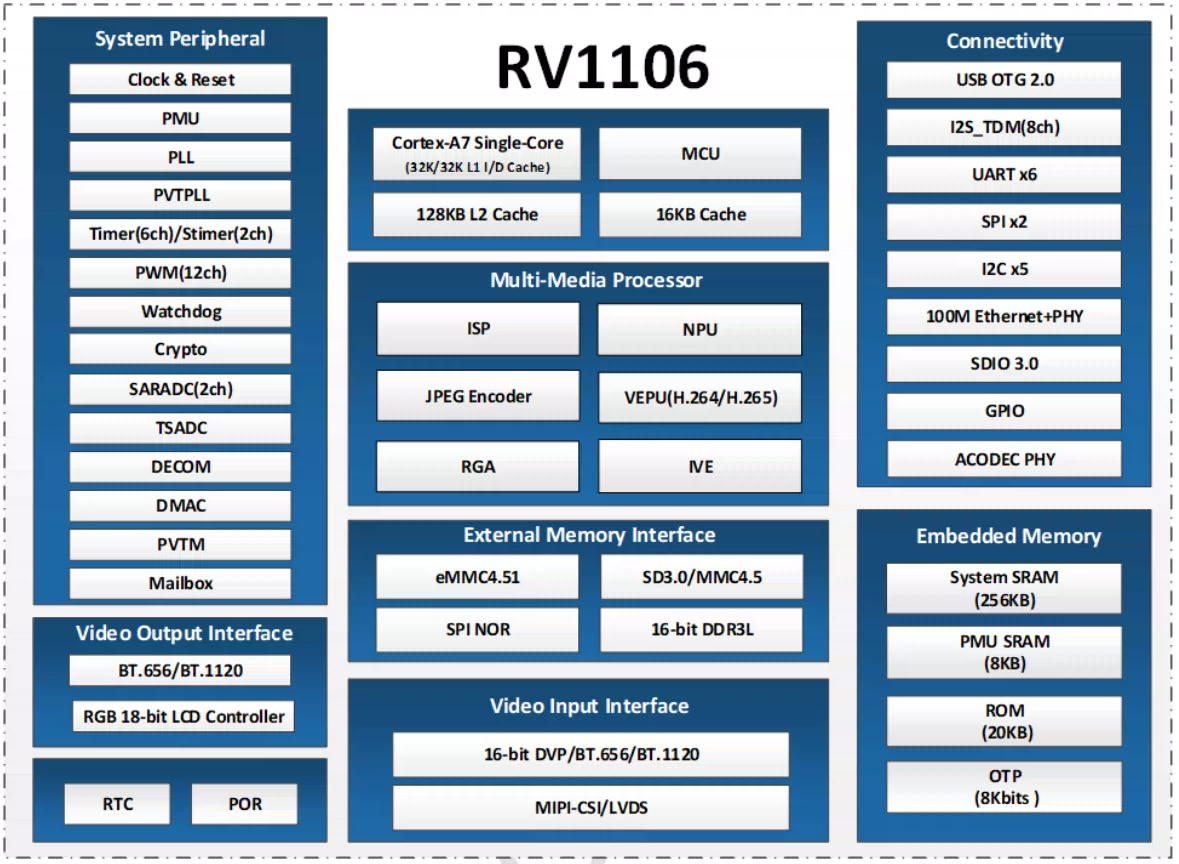

硬件架构
幸狐官网学习网址
https://wiki.luckfox.com/zh/Luckfox-Pico/Luckfox-Pico-quick-start/
启动流程
/etc/init.d/rcS
#!/bin/sh
# Start all init scripts in /etc/init.d
# executing them in numerical order.
#
for i in /etc/init.d/S??* ;do
# Ignore dangling symlinks (if any).
[ ! -f "$i" ] && continue
case "$i" in
*.sh)
# Source shell script for speed.
(
trap - INT QUIT TSTP
set start
. $i
)
;;
*)
# No sh extension, so fork subprocess.
$i start
;;
esac
doneS01seedrng
初始化随机数种子
#! /bin/sh
#
# Preserve the random seed between reboots. See urandom(4).
#
# This script can be called multiple times during operation (e.g. with
# "reload" argument) to refresh the seed.
# The following arguments can be added to SEEDRNG_ARGS in
# /etc/default/seedrng:
# --seed-dir=/path/to/seed/directory
# Path to the directory where the seed and the lock files are stored.
# for optimal operation, this should be a persistent, writeable
# location. Default is /var/lib/seedrng
#
# --skip-credit
# Set this to true only if you do not want seed files to actually
# credit the RNG, for example if you plan to replicate this file
# system image and do not have the wherewithal to first delete the
# contents of /var/lib/seedrng.
#
# Example:
# SEEDRNG_ARGS="--seed-dir=/data/seedrng --skip-credit"
#
DAEMON="seedrng"
SEEDRNG_ARGS=""
# shellcheck source=/dev/null
[ -r "/etc/default/$DAEMON" ] && . "/etc/default/$DAEMON"
case "$1" in
start|stop|restart|reload)
# Never fail, as this isn't worth making a fuss
# over if it doesn't go as planned.
# shellcheck disable=SC2086 # we need the word splitting
seedrng $SEEDRNG_ARGS || true;;
*)
echo "Usage: $0 {start|stop|restart|reload}"
exit 1
esacS01syslogd
开启syslog的守护进程
#!/bin/sh
DAEMON="syslogd"
PIDFILE="/var/run/$DAEMON.pid"
SYSLOGD_ARGS=""
# shellcheck source=/dev/null
[ -r "/etc/default/$DAEMON" ] && . "/etc/default/$DAEMON"
# BusyBox' syslogd does not create a pidfile, so pass "-n" in the command line
# and use "-m" to instruct start-stop-daemon to create one.
start() {
printf 'Starting %s: ' "$DAEMON"
# shellcheck disable=SC2086 # we need the word splitting
start-stop-daemon -b -m -S -q -p "$PIDFILE" -x "/sbin/$DAEMON" \
-- -n $SYSLOGD_ARGS
status=$?
if [ "$status" -eq 0 ]; then
echo "OK"
else
echo "FAIL"
fi
return "$status"
}
stop() {
printf 'Stopping %s: ' "$DAEMON"
start-stop-daemon -K -q -p "$PIDFILE"
status=$?
if [ "$status" -eq 0 ]; then
rm -f "$PIDFILE"
echo "OK"
else
echo "FAIL"
fi
return "$status"
}
restart() {
stop
sleep 1
start
}
case "$1" in
start|stop|restart)
"$1";;
reload)
# Restart, since there is no true "reload" feature.
restart;;
*)
echo "Usage: $0 {start|stop|restart|reload}"
exit 1
esacS02klogd
开启klogd的守护进程
#!/bin/sh
DAEMON="klogd"
PIDFILE="/var/run/$DAEMON.pid"
KLOGD_ARGS=""
# shellcheck source=/dev/null
[ -r "/etc/default/$DAEMON" ] && . "/etc/default/$DAEMON"
# BusyBox' klogd does not create a pidfile, so pass "-n" in the command line
# and use "-m" to instruct start-stop-daemon to create one.
start() {
printf 'Starting %s: ' "$DAEMON"
# shellcheck disable=SC2086 # we need the word splitting
start-stop-daemon -b -m -S -q -p "$PIDFILE" -x "/sbin/$DAEMON" \
-- -n $KLOGD_ARGS
status=$?
if [ "$status" -eq 0 ]; then
echo "OK"
else
echo "FAIL"
fi
return "$status"
}
stop() {
printf 'Stopping %s: ' "$DAEMON"
start-stop-daemon -K -q -p "$PIDFILE"
status=$?
if [ "$status" -eq 0 ]; then
rm -f "$PIDFILE"
echo "OK"
else
echo "FAIL"
fi
return "$status"
}
restart() {
stop
sleep 1
start
}
case "$1" in
start|stop|restart)
"$1";;
reload)
# Restart, since there is no true "reload" feature.
restart;;
*)
echo "Usage: $0 {start|stop|restart|reload}"
exit 1
esacS02sysctl TODO
sysctl相关操作
#!/bin/sh
#
# This script is used by busybox and procps-ng.
#
# With procps-ng, the "--system" option of sysctl also enables "--ignore", so
# errors are not reported via syslog. Use the run_logger function to mimic the
# --system behavior, still reporting errors via syslog. Users not interested
# on error reports can add "-e" to SYSCTL_ARGS.
#
# busybox does not have a "--system" option neither reports errors via syslog,
# so the scripting provides a consistent behavior between the implementations.
# Testing the busybox sysctl exit code is fruitless, as at the moment, since
# its exit status is zero even if errors happen. Hopefully this will be fixed
# in a future busybox version.
PROGRAM="sysctl"
SYSCTL_ARGS=""
# shellcheck source=/dev/null
[ -r "/etc/default/$PROGRAM" ] && . "/etc/default/$PROGRAM"
# Files are read from directories in the SYSCTL_SOURCES list, in the given
# order. A file may be used more than once, since there can be multiple
# symlinks to it. No attempt is made to prevent this.
SYSCTL_SOURCES="/etc/sysctl.d/ /usr/local/lib/sysctl.d/ /usr/lib/sysctl.d/ /lib/sysctl.d/ /etc/sysctl.conf"
# If the logger utility is available all messages are sent to syslog, except
# for the final status. The file redirections do the following:
#
# - stdout is redirected to syslog with facility.level "kern.info"
# - stderr is redirected to syslog with facility.level "kern.err"
# - file dscriptor 4 is used to pass the result to the "start" function.
#
run_logger() {
# shellcheck disable=SC2086 # we need the word splitting
find $SYSCTL_SOURCES -maxdepth 1 -name '*.conf' -print0 2> /dev/null | \
xargs -0 -r -n 1 readlink -f | {
prog_status="OK"
while :; do
read -r file || {
echo "$prog_status" >&4
break
}
echo "* Applying $file ..."
/sbin/sysctl -p "$file" $SYSCTL_ARGS || prog_status="FAIL"
done 2>&1 >&3 | /usr/bin/logger -t sysctl -p kern.err
} 3>&1 | /usr/bin/logger -t sysctl -p kern.info
}
# If logger is not available all messages are sent to stdout/stderr.
run_std() {
# shellcheck disable=SC2086 # we need the word splitting
find $SYSCTL_SOURCES -maxdepth 1 -name '*.conf' -print0 2> /dev/null | \
xargs -0 -r -n 1 readlink -f | {
prog_status="OK"
while :; do
read -r file || {
echo "$prog_status" >&4
break
}
echo "* Applying $file ..."
/sbin/sysctl -p "$file" $SYSCTL_ARGS || prog_status="FAIL"
done
}
}
if [ -x /usr/bin/logger ]; then
run_program="run_logger"
else
run_program="run_std"
fi
start() {
printf '%s %s: ' "$1" "$PROGRAM"
status=$("$run_program" 4>&1)
echo "$status"
if [ "$status" = "OK" ]; then
return 0
fi
return 1
}
case "$1" in
start)
start "Running";;
restart|reload)
start "Rerunning";;
stop)
:;;
*)
echo "Usage: $0 {start|stop|restart|reload}"
exit 1
esacS10udev
udev相关的操作
#!/bin/sh
#
# udev This is a minimal non-LSB version of a UDEV startup script. It
# was derived by stripping down the udev-058 LSB version for use
# with buildroot on embedded hardware using Linux 2.6.34+ kernels.
#
# You may need to customize this for your system's resource limits
# (including startup time!) and administration. For example, if
# your early userspace has a custom initramfs or initrd you might
# need /dev much earlier; or without hotpluggable busses (like USB,
# PCMCIA, MMC/SD, and so on) your /dev might be static after boot.
#
# This script assumes your system boots right into the eventual root
# filesystem, and that init runs this udev script before any programs
# needing more device nodes than the bare-bones set -- /dev/console,
# /dev/zero, /dev/null -- that's needed to boot and run this script.
#
# Check for config file and read it
UDEV_CONFIG=/etc/udev/udev.conf
test -r $UDEV_CONFIG || exit 6
. $UDEV_CONFIG
case "$1" in
start)
printf "Populating %s using udev: " "${udev_root:-/dev}"
[ -e /proc/sys/kernel/hotplug ] && printf '\000\000\000\000' > /proc/sys/kernel/hotplug
/sbin/udevd -d || { echo "FAIL"; exit 1; }
udevadm trigger --type=subsystems --action=add
udevadm trigger --type=devices --action=add
udevadm settle --timeout=30 || echo "udevadm settle failed"
echo "done"
;;
stop)
# Stop execution of events
udevadm control --stop-exec-queue
killall udevd
;;
*)
echo "Usage: $0 {start|stop}"
exit 1
;;
esac
exit 0S20linkmount
分区建立和挂载的操作
#!/bin/sh
bootmedium=emmc
linkdev(){
if [ ! -d "/dev/block/by-name" ];then
mkdir -p /dev/block/by-name
cd /dev/block/by-name
ln -sf /dev/mmcblk0p1 env
ln -sf /dev/mmcblk0p2 idblock
ln -sf /dev/mmcblk0p3 uboot
ln -sf /dev/mmcblk0p4 boot
ln -sf /dev/mmcblk0p5 oem
ln -sf /dev/mmcblk0p6 userdata
ln -sf /dev/mmcblk0p7 rootfs
fi }
mount_part(){
if [ -z "$1" -o -z "$2" -o -z "$3" ];then
echo "Invalid paramter, exit !!!"
exit 1
fi
root_dev=$(mountpoint -n /)
root_dev=${root_dev%% *}
partname=$1
part_dev=/dev/block/by-name/$1
mountpt=$2
part_fstype=$3
part_realdev=$(realpath $part_dev)
if [ ! -d $mountpt ]; then
if [ "$mountpt" = "IGNORE" -a "emmc" = "$bootmedium" ];then
if [ "$root_dev" = "$part_realdev" ];then
resize2fs $part_dev
fi
return 0;
elif [ "$mountpt" = "IGNORE" -a "sd_card" = "$bootmedium" ];then
if [ "$root_dev" = "$part_realdev" ];then
resize2fs $part_dev
fi
return 0;
else
echo "${0} info: mount point path [$mountpt] not found, skip..."
return 1;
fi
fi
if test -h $part_dev; then
case $bootmedium in
emmc|sd_card)
if [ "$root_dev" = "$part_realdev" ];then
resize2fs $part_dev
else
e2fsck -y $part_dev
mount -t $part_fstype $part_dev $mountpt
if [ $? -eq 0 ]; then
resize2fs $part_dev
tune2fs $part_dev -L $partname
else
echo "mount $partname error, try to format..."
mke2fs -F -L $partname $part_dev && tune2fs -c 0 -i 0 $part_dev && mount -t $part_fstype $part_dev $mountpt
fi
fi
;;
spi_nand|slc_nand)
if [ $partname = "rootfs" ];then
echo "rootfs mount on $root_dev"
elif [ "$part_fstype" = "ubifs" ]; then
part_no=$(echo $part_realdev | grep -oE "[0-9]*$")
ubi_dev=/dev/ubi${part_no}
ubi_vol=${ubi_dev}_0
mount | grep $ubi_vol
if [ $? -eq 0 ];then
echo "***********$partname has been mounted***********"
else
if [ ! -e $ubi_vol ];then
echo "***********$ubi_vol not exist***********"
if [ ! -e $ubi_dev ];then
echo "***********$ubi_dev not exist***********"
ubiattach /dev/ubi_ctrl -m $part_no -d $part_no
if [ $? -ne 0 ];then
echo "ubiattach $part_realdev error, try to format..."
ubiformat -y $part_realdev
ubiattach /dev/ubi_ctrl -m $part_no -d $part_no
fi
fi
ubi_info_dir=/sys/class/ubi/ubi${part_no}
avail_eraseblocks=$(cat $ubi_info_dir/avail_eraseblocks)
eraseblock_size=$(cat $ubi_info_dir/eraseblock_size)
echo "try to make volume: $ubi_vol ..."
ubimkvol $ubi_dev -N $partname -s $((avail_eraseblocks*eraseblock_size))
fi
mount -t $part_fstype $ubi_vol $mountpt
fi
elif [ "$part_fstype" = "squashfs" ]; then
part_no=$(echo $part_realdev | grep -oE "[0-9]*$")
ubi_dev=/dev/ubi${part_no}
ubi_vol=${ubi_dev}_0
ubi_block=/dev/ubiblock${part_no}_0
mount | grep $ubi_block
if [ $? -eq 0 ];then
echo "***********$partname has been mounted***********"
else
if [ ! -e $ubi_block ];then
echo "***********$ubi_block not exist***********"
ubiattach /dev/ubi_ctrl -m $part_no -d $part_no
if [ $? -ne 0 ];then
echo "ubiattach $part_realdev error, return !!!"
echo "Please check the device: $part_realdev"
return 1
fi
ubiblock -c $ubi_vol
fi
mount -t $part_fstype $ubi_block $mountpt
fi
elif [ "$part_fstype" = "erofs" ]; then
part_no=$(echo $part_realdev | grep -oE "[0-9]*$")
ubi_dev=/dev/ubi${part_no}
ubi_vol=${ubi_dev}_0
ubi_block=/dev/ubiblock${part_no}_0
mount | grep $ubi_block
if [ $? -eq 0 ];then
echo "***********$partname has been mounted***********"
else
if [ ! -e $ubi_block ];then
echo "***********$ubi_block not exist***********"
ubiattach /dev/ubi_ctrl -m $part_no -d $part_no
if [ $? -ne 0 ];then
echo "ubiattach $part_realdev error, return !!!"
echo "Please check the device: $part_realdev"
return 1
fi
ubiblock -c $ubi_vol
fi
mount -t $part_fstype $ubi_block $mountpt
fi
else
echo "Error: wrong filesystem type: $part_fstype, return !!!"
return 1
fi
;;
spi_nor)
if [ "$root_dev" = "$part_realdev" ];then
echo "***********$part_dev has been mounted, skipping***********"
else
echo "mount -t $part_fstype $part_dev $mountpt"
mount -t $part_fstype $part_dev $mountpt
if [ $? -eq 0 ]; then
echo "***********succeed in mounting***********"
elif [ "$part_fstype" = "jffs2" ]; then
echo "mount $partname error, try to format..."
echo "flash_erase -j ${part_realdev/block/} 0 0 && mount -t $part_fstype $part_dev $mountpt"
flash_erase -j ${part_realdev/block/} 0 0 && mount -t $part_fstype $part_dev $mountpt
else
echo "mount $partname error, skipping! Please check the filesystem."
fi
fi
;;
*)
echo "Invalid Parameter: Check bootmedium !!!"
exit 1
;;
esac
fi
}
case $1 in start) linkdev;
mount_part rootfs IGNORE ext4 ;
mount_part userdata /userdata ext4 ;
mount_part oem /oem ext4 ;
;; linkdev) linkdev ;
;; stop) printf stop $0 finished\n ;; *) echo Usage: $0 {start|stop} exit 1 ;; esacS20urandom
随机数初始化相关
#! /bin/sh
#
# urandom This script saves the random seed between reboots.
# It is called from the boot, halt and reboot scripts.
#
# Version: @(#)urandom 1.33 22-Jun-1998 miquels@cistron.nl
#
[ -c /dev/urandom ] || exit 0
#. /etc/default/rcS
case "$1" in
start|"")
# check for read only file system
if ! touch /etc/random-seed 2>/dev/null
then
echo "read-only file system detected...done"
exit
fi
if [ "$VERBOSE" != no ]
then
printf "Initializing random number generator... "
fi
# Load and then save 512 bytes,
# which is the size of the entropy pool
cat /etc/random-seed >/dev/urandom
rm -f /etc/random-seed
umask 077
dd if=/dev/urandom of=/etc/random-seed count=1 \
>/dev/null 2>&1 || echo "urandom start: failed."
umask 022
[ "$VERBOSE" != no ] && echo "done."
;;
stop)
if ! touch /etc/random-seed 2>/dev/null
then
exit
fi
# Carry a random seed from shut-down to start-up;
# see documentation in linux/drivers/char/random.c
[ "$VERBOSE" != no ] && printf "Saving random seed... "
umask 077
dd if=/dev/urandom of=/etc/random-seed count=1 \
>/dev/null 2>&1 || echo "urandom stop: failed."
[ "$VERBOSE" != no ] && echo "done."
;;
*)
echo "Usage: urandom {start|stop}" >&2
exit 1
;;
esacS21appinit
#!/bin/sh
#初始化环境变量
[ -f /etc/profile.d/RkEnv.sh ] && source /etc/profile.d/RkEnv.sh
case $1 in
start)
sh /oem/usr/bin/RkLunch.sh #运行脚本
;;
stop)
sh /oem/usr/bin/RkLunch-stop.sh
;;
*)
exit 1
;;
esacRkLunch.sh
#!/bin/sh
rcS() {
#运行用户的启动脚本
for i in /oem/usr/etc/init.d/S??*; do
# Ignore dangling symlinks (if any).
[ ! -f "$i" ] && continue #检查文件是否存在且是普通文件
case "$i" in#根据文件名后缀选择不同的执行方式
*.sh)
# Source shell script for speed.
(
trap - INT QUIT TSTP #清楚信号处理
set start #设置位置参数 $1 = "start"
. $i #执行shell脚本
)
;;
*)
# No sh extension, so fork subprocess.
$i start #非sh拓展的直接执行
;;
esac
done
}
#检查参数2是否是符号链接，如果不是则强制创建参数1的软链接
check_linker() {
[ ! -L "$2" ] && ln -sf $1 $2
}
network_init() {
#提取HWaddr 地址
ethaddr1=$(ifconfig -a | grep "eth.*HWaddr" | awk '{print $5}')
#如果文件存在则比对mac地址是否一样，不一样则重新设置
if [ -f /data/ethaddr.txt ]; then
ethaddr2=$(cat /data/ethaddr.txt)
if [ $ethaddr1 == $ethaddr2 ]; then
echo "eth HWaddr cfg ok"
else
ifconfig eth0 down
ifconfig eth0 hw ether $ethaddr2
fi
#文件不存在则将获取到的mac地址写入到文件中
else
echo $ethaddr1 >/data/ethaddr.txt
fi
#启动网络并随机分配IP地址
ifconfig eth0 up && udhcpc -i eth0 >/dev/null 2>&1
}
post_chk() {
#TODO: ensure /userdata mount done
#等待30秒 判断userdata是否挂起
cnt=0
while [ $cnt -lt 30 ]; do
cnt=$((cnt + 1))
if mount | grep -w userdata; then
break
fi
sleep .1
done
# if ko exist, install ko first
default_ko_dir=/ko
#加载驱动
if [ -f "/oem/usr/ko/insmod_ko.sh" ]; then
default_ko_dir=/oem/usr/ko
fi
if [ -f "$default_ko_dir/insmod_ko.sh" ]; then
cd $default_ko_dir && sh insmod_ko.sh && cd -
fi
#初始化网络
network_init &
#创建软链接
check_linker /userdata /oem/usr/www/userdata
check_linker /media/usb0 /oem/usr/www/usb0
check_linker /mnt/sdcard /oem/usr/www/sdcard
# if /data/rkipc not exist, cp /usr/share
rkipc_ini=/userdata/rkipc.ini
default_rkipc_ini=/tmp/rkipc-factory-config.ini
#如果不存在rkipc.ini文件
if [ ! -f "/oem/usr/share/rkipc.ini" ]; then
#lsmod显示加载的所有内核，判断加载的摄像头然后拷贝初始化文件
lsmod | grep mis5001
if [ $? -eq 0 ]; then
ln -s -f /oem/usr/share/rkipc-mis5001-500w.ini $default_rkipc_ini
fi
lsmod | grep sc530ai
if [ $? -eq 0 ]; then
ln -s -f /oem/usr/share/rkipc-500w.ini $default_rkipc_ini
fi
lsmod | grep sc4336
if [ $? -eq 0 ]; then
ln -s -f /oem/usr/share/rkipc-400w.ini $default_rkipc_ini
fi
lsmod | grep sc3336
if [ $? -eq 0 ]; then
ln -s -f /oem/usr/share/rkipc-300w.ini $default_rkipc_ini
fi
lsmod | grep imx415
if [ $? -eq 0 ]; then
ln -s -f /oem/usr/share/rkipc-800w.ini $default_rkipc_ini
fi
fi
# check md5sum
# tmp_md5=/tmp/.rkipc-ini.md5sum
# data_md5=/userdata/.rkipc-default.md5sum
# md5sum $default_rkipc_ini > $tmp_md5
# chk_rkipc=`cat $tmp_md5|awk '{print $1}'`
# rm $tmp_md5
# if [ ! -f $data_md5 ];then
# md5sum $default_rkipc_ini > $data_md5
# fi
# grep -w $chk_rkipc $data_md5
# if [ $? -ne 0 ] ;then
# rm -f $rkipc_ini
# echo "$chk_rkipc" > $data_md5
# fi
#如果不存在初始化文件就退出
if [ ! -f "$default_rkipc_ini" ]; then
echo "Error: not found rkipc.ini !!!"
exit -1
fi
#如果rkipc.ini不存在则拷贝
#if [ ! -f "$rkipc_ini" ]; then
cp $default_rkipc_ini $rkipc_ini -f
#fi
#如果image.bmp不存在则拷贝
if [ ! -f "/userdata/image.bmp" ]; then
cp -fa /oem/usr/share/image.bmp /userdata/
fi
#如果音频测试文件存在则调用rk_mpi_ao_test进行文件输出 喇叭测试
if [ -f "/oem/usr/share/speaker_test.wav" ]; then
rk_mpi_ao_test -i /oem/usr/share/speaker_test.wav --sound_card_name=hw:0,0 --device_ch=2 --device_rate=8000 --input_rate=8000 --input_ch=2 --set_volume 50
fi
# 运行rkipc进程，制定aig配置文件
if [ -d "/oem/usr/share/iqfiles" ]; then
rkipc -a /oem/usr/share/iqfiles &
else
rkipc &
fi
}
rcS
#配置产生core
ulimit -c unlimited
echo "/data/core-%p-%e" >/proc/sys/kernel/core_pattern
# echo 0 > /sys/devices/platform/rkcif-mipi-lvds/is_use_dummybuf
echo 1 >/proc/sys/vm/overcommit_memory
post_chk &S25backlight
就是加载一个调节背光的驱动
#!/bin/sh
start(){
if [ -f "/oem/usr/ko/pwm_bl.ko" ]; then
sleep 1
insmod /oem/usr/ko/pwm_bl.ko
fi
}
case $1 in
start)
start &
;;
*)
exit 1
;;
esac
S30dbus
dbus相关
#!/bin/sh
# 创建需要的文件夹
[ -d /run/dbus ] || mkdir -p /run/dbus
[ -d /var/lock/subsys ] || mkdir -p /var/lock/subsys
[ -d /tmp/dbus ] || mkdir -p /tmp/dbus
#返回值
RETVAL=0
start() {
printf "Starting system message bus: "
dbus-uuidgen --ensure # 确保生成唯一的D-Bus UUID
dbus-daemon --system # 启动系统级D-Bus守护进程
RETVAL=$? # 获取返回值
echo "done"
[ $RETVAL -eq 0 ] && touch /var/lock/subsys/dbus-daemon # 创建锁文件
}
stop() {
printf "Stopping system message bus: "
## we don't want to kill all the per-user $processname, we want
## to use the pid file *only*; because we use the fake nonexistent
## program name "$servicename" that should be safe-ish
killall dbus-daemon # 终止所有dbus-daemon进程
RETVAL=$?
echo "done"
if [ $RETVAL -eq 0 ]; then
rm -f /var/lock/subsys/dbus-daemon # 删除锁文件
rm -f /run/messagebus.pid # 删除PID文件
fi
}
# See how we were called.
# 根据传入的命令执行
case "$1" in
start)
start
;;
stop)
stop
;;
restart)
stop
start
;;
condrestart)
if [ -f /var/lock/subsys/$servicename ]; then
stop
start
fi
;;
reload)
echo "Message bus can't reload its configuration, you have to restart it"
RETVAL=$?
;;
*)
echo "Usage: $0 {start|stop|restart|condrestart|reload}"
;;
esac
exit $RETVALS40bluetoothd
开启蓝牙进程并将pid写入到/var/run/bluetoothd.pid
#!/bin/sh
DAEMON="bluetoothd"
PIDFILE="/var/run/$DAEMON.pid"
BLUETOOTHD_ARGS="-n"
# shellcheck source=/dev/null
#检查PID文件是否存在
[ -r "/etc/default/$DAEMON" ] && . "/etc/default/$DAEMON"
#开启蓝牙
start() {
printf 'Starting %s: ' "$DAEMON"
# shellcheck disable=SC2086 # we need the word splitting
start-stop-daemon -S -q -m -b -p "$PIDFILE" -x "/usr/libexec/bluetooth/$DAEMON" \
-- $BLUETOOTHD_ARGS
status=$?
if [ "$status" -eq 0 ]; then
echo "OK"
else
echo "FAIL"
fi
return "$status"
}
stop() {
printf 'Stopping %s: ' "$DAEMON"
start-stop-daemon -K -q -p "$PIDFILE"
status=$?
if [ "$status" -eq 0 ]; then
echo "OK"
else
echo "FAIL"
fi
return "$status"
}
restart() {
stop
sleep 1
start
}
reload() {
printf 'Reloading %s: ' "$DAEMON"
start-stop-daemon -K -s HUP -q -p "$PIDFILE"
status=$?
if [ "$status" -eq 0 ]; then
echo "OK"
else
echo "FAIL"
fi
return "$status"
}
case "$1" in
start|stop|restart|reload)
"$1";;
*)
echo "Usage: $0 {start|stop|restart|reload}"
exit 1
esacS40network
开启网络相关的配置
#!/bin/sh
#
# Start the network....
#
# Debian ifupdown needs the /run/network lock directory
mkdir -p /run/network
case "$1" in
start)
printf "Starting network: "
/sbin/ifup -a
[ $? = 0 ] && echo "OK" || echo "FAIL"
;;
stop)
printf "Stopping network: "
/sbin/ifdown -a
[ $? = 0 ] && echo "OK" || echo "FAIL"
;;
restart|reload)
"$0" stop
"$0" start
;;
*)
echo "Usage: $0 {start|stop|restart}"
exit 1
esac
exit $?S49ntp
开启ntp进程并将pid写入到/var/run/ntpd.pid
#!/bin/sh
#
# Starts Network Time Protocol daemon
#
DAEMON="ntpd"
PIDFILE="/var/run/$DAEMON.pid"
NTPD_ARGS=" -g"
# shellcheck source=/dev/null
[ -r "/etc/default/$DAEMON" ] && . "/etc/default/$DAEMON"
start() {
printf 'Starting %s: ' "$DAEMON"
# shellcheck disable=SC2086 # we need the word splitting
start-stop-daemon -S -q -p "$PIDFILE" -x "/usr/sbin/$DAEMON" \
-- $NTPD_ARGS -p "$PIDFILE"
status=$?
if [ "$status" -eq 0 ]; then
echo "OK"
else
echo "FAIL"
fi
return "$status"
}
stop() {
printf 'Stopping %s: ' "$DAEMON"
start-stop-daemon -K -q -p "$PIDFILE"
status=$?
if [ "$status" -eq 0 ]; then
rm -f "$PIDFILE"
echo "OK"
else
echo "FAIL"
fi
return "$status"
}
restart() {
stop
sleep 1
start
}
case "$1" in
start|stop|restart)
"$1";;
reload)
# Restart, since there is no true "reload" feature.
restart;;
*)
echo "Usage: $0 {start|stop|restart|reload}"
exit 1
esacS50sshd
开启sshd进程
#启动sshd
#!/bin/sh
#
# sshd Starts sshd.
#
# Make sure the ssh-keygen progam exists
# 确保ssh-keygen存在
[ -f /usr/bin/ssh-keygen ] || exit 0
umask 077
start() {
chown root:root /var/empty/
# Create any missing keys
/usr/bin/ssh-keygen -A
printf "Starting sshd: "
/usr/sbin/sshd
touch /var/lock/sshd
echo "OK"
}
stop() {
printf "Stopping sshd: "
killall sshd
rm -f /var/lock/sshd
echo "OK"
}
restart() {
stop
start
}
case "$1" in
start)
start
;;
stop)
stop
;;
restart|reload)
restart
;;
*)
echo "Usage: $0 {start|stop|restart}"
exit 1
esac
exit $?S50telnet
开启telnet进程并将pid写入到/var/run/telnetd.pid
#!/bin/sh
#
# Start telnet....
#
TELNETD_ARGS=-F
[ -r /etc/default/telnet ] && . /etc/default/telnet
start() {
printf "Starting telnetd: "
start-stop-daemon -S -q -m -b -p /var/run/telnetd.pid \
-x /usr/sbin/telnetd -- $TELNETD_ARGS
[ $? = 0 ] && echo "OK" || echo "FAIL"
}
stop() {
printf "Stopping telnetd: "
start-stop-daemon -K -q -p /var/run/telnetd.pid \
-x /usr/sbin/telnetd
[ $? = 0 ] && echo "OK" || echo "FAIL"
}
case "$1" in
start)
start
;;
stop)
stop
;;
restart|reload)
stop
start
;;
*)
echo "Usage: $0 {start|stop|restart}"
exit 1
esac
exit $?S50usbdevice TODO
USB相关，还未细看
#!/bin/sh
#
# setup configfs for adbd, usb mass storage and MTP....
# For kernel v4.4 usb configfs
#
# Load default env variables from profiles
. /etc/profile
UMS_EN=off
ADB_EN=on
MTP_EN=off
NTB_EN=off
ACM_EN=off
UAC1_EN=off
UAC2_EN=off
UVC_EN=off
RNDIS_EN=on
HID_EN=off
USB_ATTRIBUTE=0x409
USB_GROUP=rockchip
USB_SKELETON=b.1
CONFIGFS_DIR=/sys/kernel/config
USB_CONFIGFS_DIR=${CONFIGFS_DIR}/usb_gadget/${USB_GROUP}
USB_STRINGS_DIR=${USB_CONFIGFS_DIR}/strings/${USB_ATTRIBUTE}
USB_FUNCTIONS_DIR=${USB_CONFIGFS_DIR}/functions
USB_CONFIGS_DIR=${USB_CONFIGFS_DIR}/configs/${USB_SKELETON}
# For VBUS_ALWAYS_ON usb otg is not support ums
# Since the block to ums is always occupated by USB due to no disconneted state
UMS_BLOCK=/userdata/ums_shared.img
UMS_BLOCK_SIZE=0 #unit M
UMS_BLOCK_TYPE=fat
UMS_BLOCK_AUTO_MOUNT=off
UMS_RO=0
UVC_DIR=${USB_FUNCTIONS_DIR}/uvc.gs6/
UVC_STREAMING_DIR=${UVC_DIR}/streaming/
UVC_CONTROL_DIR=${UVC_DIR}/control/
UVC_U_DIR=${UVC_STREAMING_DIR}/uncompressed/u/
UVC_M_DIR=${UVC_STREAMING_DIR}/mjpeg/m/
UVC_F_DIR=${UVC_STREAMING_DIR}/framebased/f/
test_write()
{
test -e $2 && echo $1 > $2
}
function_init()
{
mkdir ${USB_FUNCTIONS_DIR}/uac1.gs0
test_write 1 ${USB_FUNCTIONS_DIR}/uac1.gs0/c_feature_unit
test_write 1 ${USB_FUNCTIONS_DIR}/uac1.gs0/p_feature_unit
mkdir ${USB_FUNCTIONS_DIR}/uac2.gs0
test_write 1 ${USB_FUNCTIONS_DIR}/uac2.gs0/c_feature_unit
test_write 1 ${USB_FUNCTIONS_DIR}/uac2.gs0/p_feature_unit
mkdir ${USB_FUNCTIONS_DIR}/ffs.adb
mkdir ${USB_FUNCTIONS_DIR}/ffs.ntb
mkdir ${USB_FUNCTIONS_DIR}/mtp.gs0
mkdir ${USB_FUNCTIONS_DIR}/rndis.gs0
#write /config/usb_gadget/g1/functions/rndis.gs0/wceis 1
mkdir ${USB_FUNCTIONS_DIR}/acm.gs6
mkdir ${USB_FUNCTIONS_DIR}/mass_storage.0
mkdir ${USB_FUNCTIONS_DIR}/uvc.gs6
mkdir ${USB_FUNCTIONS_DIR}/hid.usb0
}
configfs_init()
{
echo "Debug: configfs_init"
mkdir /dev/usb-ffs
mount -t configfs none ${CONFIGFS_DIR}
mkdir ${USB_CONFIGFS_DIR} -m 0770
echo 0x2207 > ${USB_CONFIGFS_DIR}/idVendor
echo 0x0310 > ${USB_CONFIGFS_DIR}/bcdDevice
echo 0x0200 > ${USB_CONFIGFS_DIR}/bcdUSB
mkdir ${USB_STRINGS_DIR} -m 0770
SERIAL=`cat /proc/cpuinfo | grep Serial | awk '{print $3}'`
if [ -z $SERIAL ];then
SERIAL=0123456789ABCDEF
fi
echo $SERIAL > ${USB_STRINGS_DIR}/serialnumber
echo "rockchip" > ${USB_STRINGS_DIR}/manufacturer
echo "rk3xxx" > ${USB_STRINGS_DIR}/product
function_init
mkdir ${USB_CONFIGS_DIR} -m 0770
mkdir ${USB_CONFIGS_DIR}/strings/${USB_ATTRIBUTE} -m 0770
echo 0x1 > ${USB_CONFIGFS_DIR}/os_desc/b_vendor_code
echo "MSFT100" > ${USB_CONFIGFS_DIR}/os_desc/qw_sign
echo 500 > ${USB_CONFIGS_DIR}/MaxPower
ln -s ${USB_CONFIGS_DIR} ${USB_CONFIGFS_DIR}/os_desc/b.1
}
make_config_string()
{
tmp=$CONFIG_STRING
if [ -n "$CONFIG_STRING" ]; then
CONFIG_STRING=${tmp}_${1}
else
CONFIG_STRING=$1
fi
}
parse_parameter()
{
# find name and var
NAME=`echo $1 | awk -F "=" '{print $1}'`
VAR=`echo $1 | awk -F "=" '{print $2}'`
case "$NAME" in
ums_block)
UMS_BLOCK=${VAR}
;;
ums_block_size)
if [ ! "$VAR" -gt 0 ] 2>/dev/null ;then
echo "$VAR is not a number"
exit 1
fi
UMS_BLOCK_SIZE=${VAR}
;;
ums_block_type)
UMS_BLOCK_TYPE=${VAR}
;;
ums_block_auto_mount)
UMS_BLOCK_AUTO_MOUNT=${VAR}
;;
ums_ro)
if [ "$VAR" != "off" ]; then
echo "Set UMS read-only"
UMS_RO=1
fi
UMS_RO=0
;;
esac
}
parameter_init()
{
while read line
do
case "$line" in
usb_mtp_en)
MTP_EN=on
make_config_string mtp
;;
usb_adb_en)
ADB_EN=on
make_config_string adb
;;
usb_ums_en)
UMS_EN=on
make_config_string ums
;;
usb_ntb_en)
NTB_EN=on
make_config_string ntb
;;
usb_acm_en)
ACM_EN=on
make_config_string acm
;;
usb_uac1_en)
UAC1_EN=on
make_config_string uac1
;;
usb_uac2_en)
UAC2_EN=on
make_config_string uac2
;;
usb_uvc_en)
UVC_EN=on
make_config_string uvc
;;
usb_rndis_en)
RNDIS_EN=on
make_config_string rndis
;;
usb_hid_en)
HID_EN=on
make_config_string hid
;;
*)
parse_parameter ${line}
;;
esac
done < $USB_CONFIG_FILE
case "$CONFIG_STRING" in
ums)
PID=0x0000
;;
mtp)
PID=0x0001
;;
adb)
PID=0x0006
;;
mtp_adb | adb_mtp)
PID=0x0011
;;
ums_adb | adb_ums)
PID=0x0018
;;
acm)
PID=0x1005
;;
*)
PID=0x0019
esac
}
use_os_desc()
{
if [ $MTP_EN = on ];then
echo "MTP" > ${USB_FUNCTIONS_DIR}/mtp.gs0/os_desc/interface.MTP/compatible_id
echo 1 > ${USB_CONFIGFS_DIR}/os_desc/use
fi
}
pre_run_binary()
{
if [ $ADB_EN = on ];then
mkdir /dev/usb-ffs/adb -m 0770
mount -o uid=2000,gid=2000 -t functionfs adb /dev/usb-ffs/adb
start-stop-daemon --start --quiet --background --exec /usr/bin/adbd
fi
if [ $NTB_EN = on ];then
mkdir /dev/usb-ffs/ntb -m 0770
mount -o uid=2000,gid=2000 -t functionfs ntb /dev/usb-ffs/ntb
# Not start app here
fi
# Add uvc app here with start-stop-daemon
}
configure_uvc_resolution_yuyv()
{
W=$1
H=$2
DIR=${UVC_U_DIR}/${H}p/
mkdir ${DIR}
echo $W > ${DIR}/wWidth
echo $H > ${DIR}/wHeight
echo 333333 > ${DIR}/dwDefaultFrameInterval
echo $((W*H*20)) > ${DIR}/dwMinBitRate
echo $((W*H*20)) > ${DIR}/dwMaxBitRate
echo $((W*H*2)) > ${DIR}/dwMaxVideoFrameBufferSize
echo -e "333333\n666666\n1000000\n2000000" > ${DIR}/dwFrameInterval
}
configure_uvc_resolution_mjpeg()
{
W=$1
H=$2
DIR=${UVC_M_DIR}/${H}p/
mkdir ${DIR}
echo $W > ${DIR}/wWidth
echo $H > ${DIR}/wHeight
echo 333333 > ${DIR}/dwDefaultFrameInterval
echo $((W*H*20)) > ${DIR}/dwMinBitRate
echo $((W*H*20)) > ${DIR}/dwMaxBitRate
echo $((W*H*2)) > ${DIR}/dwMaxVideoFrameBufferSize
echo -e "333333\n666666\n1000000\n2000000" > ${DIR}/dwFrameInterval
}
configure_uvc_resolution_h264()
{
W=$1
H=$2
DIR=${UVC_F_DIR}/${H}p/
mkdir ${DIR}
echo $W > ${DIR}/wWidth
echo $H > ${DIR}/wHeight
echo 333333 > ${DIR}/dwDefaultFrameInterval
echo $((W*H*10)) > ${DIR}/dwMinBitRate
echo $((W*H*10)) > ${DIR}/dwMaxBitRate
#echo $((W*H*2)) > ${DIR}/dwMaxVideoFrameBufferSize
echo -e "333333\n666666\n1000000\n2000000" > ${DIR}/dwFrameInterval
}
syslink_function()
{
ln -s ${USB_FUNCTIONS_DIR}/$1 ${USB_CONFIGS_DIR}/f${USB_FUNCTIONS_CNT}
let USB_FUNCTIONS_CNT=USB_FUNCTIONS_CNT+1
}
bind_functions()
{
USB_FUNCTIONS_CNT=1
test $UAC1_EN = on && syslink_function uac1.gs0
test $UAC2_EN = on && syslink_function uac2.gs0
if [ $UVC_EN = on ];then
#echo 3072 > ${UVC_DIR}/streaming_maxpacket
#echo 1 > ${UVC_DIR}/streaming_bulk
mkdir ${UVC_CONTROL_DIR}/header/h
ln -s ${UVC_CONTROL_DIR}/header/h ${UVC_CONTROL_DIR}/class/fs/h
ln -s ${UVC_CONTROL_DIR}/header/h ${UVC_CONTROL_DIR}/class/ss/h
##YUYV support config
mkdir ${UVC_U_DIR}
configure_uvc_resolution_yuyv 640 480
configure_uvc_resolution_yuyv 1280 720
##mjpeg support config
mkdir ${UVC_M_DIR}
configure_uvc_resolution_mjpeg 640 480
configure_uvc_resolution_mjpeg 1280 720
configure_uvc_resolution_mjpeg 1920 1080
configure_uvc_resolution_mjpeg 2560 1440
configure_uvc_resolution_mjpeg 2592 1944
## h.264 support config
mkdir ${UVC_F_DIR}
configure_uvc_resolution_h264 640 480
configure_uvc_resolution_h264 1280 720
configure_uvc_resolution_h264 1920 1080
mkdir ${UVC_STREAMING_DIR}/header/h
ln -s ${UVC_U_DIR} ${UVC_STREAMING_DIR}/header/h/u
ln -s ${UVC_M_DIR} ${UVC_STREAMING_DIR}/header/h/m
ln -s ${UVC_F_DIR} ${UVC_STREAMING_DIR}/header/h/f
ln -s ${UVC_STREAMING_DIR}/header/h ${UVC_STREAMING_DIR}/class/fs/h
ln -s ${UVC_STREAMING_DIR}/header/h ${UVC_STREAMING_DIR}/class/hs/h
ln -s ${UVC_STREAMING_DIR}/header/h ${UVC_STREAMING_DIR}/class/ss/h
syslink_function uvc.gs6
fi
test $RNDIS_EN = on && syslink_function rndis.gs0
test $MTP_EN = on && syslink_function mtp.gs0
test $NTB_EN = on && syslink_function ffs.ntb
test $ADB_EN = on && syslink_function ffs.adb
test $ACM_EN = on && syslink_function acm.gs6
if [ $HID_EN = on ]; then
echo 1 > /sys/kernel/config/usb_gadget/rockchip/functions/hid.usb0/protocol
echo 1 > /sys/kernel/config/usb_gadget/rockchip/functions/hid.usb0/subclass
echo 8 > /sys/kernel/config/usb_gadget/rockchip/functions/hid.usb0/report_length
echo -ne \\x05\\x01\\x09\\x06\\xa1\\x01\\x05\\x07\\x19\\xe0\\x29\\xe7\\x15\\x00\\x25\\x01\\x75\\x01\\x95\\x08\\x81\\x02\\x95\\x01\\x75\\x08\\x81\\x03\\x95\\x05\\x75\\x01\\x05\\x08\\x19\\x01\\x29\\x05\\x91\\x02\\x95\\x01\\x75\\x03\\x91\\x03\\x95\\x06\\x75\\x08\\x15\\x00\\x25\\x65\\x05\\x07\\x19\\x00\\x29\\x65\\x81\\x00\\xc0 > /sys/kernel/config/usb_gadget/rockchip/functions/hid.usb0/report_desc
syslink_function hid.usb0
fi
if [ $UMS_EN = on ];then
echo ${UMS_RO} > ${USB_FUNCTIONS_DIR}/mass_storage.0/lun.0/ro
if [ "$UMS_BLOCK_SIZE" != "0" -a ! -e ${UMS_BLOCK} ]; then
dd if=/dev/zero of=${UMS_BLOCK} bs=1M count=${UMS_BLOCK_SIZE}
mkfs.${UMS_BLOCK_TYPE} ${UMS_BLOCK}
test $? && echo "Warning: failed to mkfs.${UMS_BLOCK_TYPE} ${UMS_BLOCK}"
fi
mkdir /mnt/ums -p
if [ $UMS_BLOCK_AUTO_MOUNT = on ];then
mount ${UMS_BLOCK} /mnt/ums
else
echo ${UMS_BLOCK} > ${USB_FUNCTIONS_DIR}/mass_storage.0/lun.0/file
fi
syslink_function mass_storage.0
fi
echo ${CONFIG_STRING} > ${USB_CONFIGS_DIR}/strings/${USB_ATTRIBUTE}/configuration
}
run_binary()
{
if [ $MTP_EN = on ];then
start-stop-daemon --start --quiet --background --exec /usr/bin/mtp-server
fi
if [ $RNDIS_EN = on ];then
sleep .5
ifconfig usb0 172.32.0.70
ifconfig usb0 up
fi
}
program_kill()
{
P_PID=`ps | grep $1 | grep -v grep | awk '{print $1}'`
test -z ${P_PID} || kill -9 ${P_PID}
}
usb_device_stop()
{
echo "none" > ${USB_CONFIGFS_DIR}/UDC
program_kill adbd
program_kill mtp-server
ls ${USB_CONFIGS_DIR} | grep f[0-9] | xargs -I {} rm ${USB_CONFIGS_DIR}/{}
}
case "$1" in
start)
ifconfig lo up
# if [ ! -e "/tmp/.usb_config" ]; then
# echo "$0: Cannot find .usb_config"
# # exit 0
# USB_CONFIG_FILE=/tmp/.usb_config
# echo "usb_adb_en" >> $USB_CONFIG_FILE
# fi
# if [ -e /tmp/.usb_config ]; then
# USB_CONFIG_FILE=/tmp/.usb_config
# fi
parameter_init
# if [ -z $CONFIG_STRING ]; then
# echo "$0: no function be selected"
# exit 0
# fi
test -d ${USB_CONFIGFS_DIR} || configfs_init
use_os_desc
echo $PID > ${USB_CONFIGFS_DIR}/idProduct
bind_functions
pre_run_binary
sleep 1
UDC=`ls /sys/class/udc/| awk '{print $1}'`
echo $UDC > ${USB_CONFIGFS_DIR}/UDC
run_binary
;;
stop)
usb_device_stop
;;
restart|reload)
# Do restart usb by udev
echo "USB_FORCE_CHANGED" >> /tmp/.usb_config
usb_device_stop
sleep 1
$0 start
# Don't forget to clear "USB_FORCE_CHANGED"
sed -i "/USB_FORCE_CHANGED/d" /tmp/.usb_config
;;
*)
echo "Usage: $0 {start|stop|restart}"
exit 1
esac
exit 0S60micinit
#!/bin/sh
#使能环境变量
[ -f /etc/profile.d/RkEnv.sh ] && source /etc/profile.d/RkEnv.sh
#音频播放设置
case $1 in
start)
if command -v amixer >/dev/null 2>&1; then
amixer set 'ADC ALC Left' 26 > /dev/null 2>&1
amixer set 'ADC ALC Right' 26 > /dev/null 2>&1
amixer set 'ADC MIC Left Gain' 3 > /dev/null 2>&1
amixer set 'ADC MIC Right Gain' 3 > /dev/null 2>&1
amixer set 'ADC MICBIAS Voltage' 'VREFx0_975' > /dev/null 2>&1
amixer set 'ADC Mode' 'SingadcL' > /dev/null 2>&1
fi
;;
*)
exit 1
;;
esacS91smb
启动samba服务
#!/bin/sh
[ -f /etc/samba/smb.conf ] || exit 0
mkdir -p /var/log/samba
start() {
printf "Starting SMB services: "
smbd -D
[ $? = 0 ] && echo "OK" || echo "FAIL"
printf "Starting NMB services: "
nmbd -D
[ $? = 0 ] && echo "OK" || echo "FAIL"
}
stop() {
printf "Shutting down SMB services: "
kill -9 `pidof smbd`
[ $? = 0 ] && echo "OK" || echo "FAIL"
printf "Shutting down NMB services: "
kill -9 `pidof nmbd`
[ $? = 0 ] && echo "OK" || echo "FAIL"
}
restart() {
stop
start
}
reload() {
printf "Reloading smb.conf file: "
kill -HUP `pidof smbd`
[ $? = 0 ] && echo "OK" || echo "FAIL"
}
case "$1" in
start)
start
;;
stop)
stop
;;
restart)
restart
;;
reload)
reload
;;
*)
echo "Usage: $0 {start|stop|restart|reload}"
exit 1
esac
exit $?S99_auto_reboot
配置自动重启脚本
#!/bin/sh
case "$1" in
start)
if [ -e "/oem/rockchip_test/auto_reboot.sh" ]; then
echo "start recovery auto-reboot"
mkdir -p /data/cfg/rockchip_test
cp /oem/rockchip_test/auto_reboot.sh /data/cfg/rockchip_test/
fi
if [ -e "/data/cfg/rockchip_test/power_lost_test.sh" ]; then
echo "start test flash power lost"
source /data/cfg/rockchip_test/power_lost_test.sh &
fi
if [ -e "/data/cfg/rockchip_test/auto_reboot.sh" ]; then
echo "start auto-reboot"
source /data/cfg/rockchip_test/auto_reboot.sh `cat /data/cfg/rockchip_test/reboot_total_cnt`&
fi
;;
stop)
echo "stop auto-reboot finished"
;;
restart|reload)
$0 stop
$0 start
;;
*)
echo "Usage: $0 {start|stop|restart}"
exit 1
esac
exit 0S99hciinit
音频相关的初始化
#!/bin/sh
check_hciconfig() {
if command -v hciattach &> /dev/null; then
if lsmod | grep -q "aic8800_fdrv"; then
hciattach -s 1500000 /dev/ttyS1 any 1500000 flow nosleep&
sleep 2
if hciconfig -a | grep -q "hci0"; then
hciconfig hci0 up&
else
echo "hci0 not found or not available."
fi
ifconfig wlan0 up && udhcpc -i wlan0 > /dev/null 2>&1
else
echo "aic8800_fdrv not found."
fi
fi
}
case $1 in
start)
check_hciconfig &
;;
*)
exit 1
;;
esacS99luckfoxconfigload
开发板配置相关
#!/bin/sh
load_luckfoxconfig() {
if [ -f /usr/bin/luckfox-config ]; then
luckfox-config load
fi
if [ "$(cat /proc/device-tree/model)" == "Luckfox Pico Ultra" ] ||
[ "$(cat /proc/device-tree/model)" == "Luckfox Pico Ultra W" ]; then
if [ -f /usr/bin/luckfox_switch_rgb_resolution ]; then
luckfox_switch_rgb_resolution &
fi
fi
}
case $1 in
start)
load_luckfoxconfig
;;
*)
exit 1
;;
esacS99luckfoxcustomoverlay TODO
#!/bin/bash
LUCKFOX_FDT_DTB=/tmp/.fdt.dtb
LUCKFOX_FDT_HDR_DTB=/tmp/.fdt_header.dtb
LUCKFOX_FDT_HDR_OVERLAY_DTS=/tmp/.fdt_header_overlay.dts
LUCKFOX_FDT_HDR_OVERLAY_DTBO=/tmp/.fdt_header_overlay.dtbo
LUCKFOX_FDT_DUMP_TXT=/tmp/.fdt_dump.txt
LF_CUSTOM_DTS_PATH="/mnt/cfg"
SYS_OVERLAYS_PATH="/sys/kernel/config/device-tree/overlays"
LUCKFOX_CHIP_MEDIA_CLASS="emmc"
LUCKFOX_CHIP_MEDIA="/dev/mmcblk0p4"
function luckfox_tools_check() {
if ! command -v dialog &>/dev/null; then
echo "The dialog is not installed "
exit
fi
if ! command -v dtc &>/dev/null; then
echo "The dtc is not installed"
exit
fi
# get media class dev
if [[ -e /dev/mmcblk0p4 ]]; then
LUCKFOX_CHIP_MEDIA_CLASS="emmc"
LUCKFOX_CHIP_MEDIA=/dev/mmcblk0p4
elif [[ -e /dev/mmcblk1p4 ]]; then
LUCKFOX_CHIP_MEDIA_CLASS="sdmmc"
LUCKFOX_CHIP_MEDIA=/dev/mmcblk1p4
luckfox_set_pin_parameter "SDMMC" 1
elif [[ -e /dev/mtdblock3 ]]; then
LUCKFOX_CHIP_MEDIA_CLASS="spi_nand"
LUCKFOX_CHIP_MEDIA=/dev/mtdblock3
else
LUCKFOX_CHIP_MEDIA_CLASS="unknown"
echo "Do not know the storage medium of Luckfox!"
exit
fi
}
# -- Static Overlay --
function luckfox_sha256_convert() {
local sha256_hash=$1
local formatted_hash=""
for ((i = 0; i < ${#sha256_hash}; i += 8)); do
formatted_hash+="0x${sha256_hash:$i:8} "
done
echo "$formatted_hash"
}
function luckfox_update_fdt() {
# get fdt_header
local origin_fdt_size_hex origin_fdt_size
dd if=$LUCKFOX_CHIP_MEDIA of=$LUCKFOX_FDT_HDR_DTB bs=1 skip=0 count=2048 >/dev/null 2>&1
# get size
if [ ! -f $LUCKFOX_FDT_HDR_DTB ]; then
echo "$LUCKFOX_FDT_HDR_DTB can't be found!"
return
fi
origin_fdt_size_hex=$(fdtdump $LUCKFOX_FDT_HDR_DTB | grep -A 5 "fdt {" | grep "data-size" | awk '{print $3}' | tr -d ';<>')
origin_fdt_size=$(printf "%d\n" "$origin_fdt_size_hex")
# get fdt dtb
dd if=$LUCKFOX_CHIP_MEDIA of=$LUCKFOX_FDT_DTB bs=1 skip=2048 count="$origin_fdt_size" >/dev/null 2>&1
# create fdt dump
if [ ! -f $LUCKFOX_FDT_DTB ]; then
echo "$LUCKFOX_FDT_DTB can't be found!"
return
fi
fdtdump $LUCKFOX_FDT_DTB >$LUCKFOX_FDT_DUMP_TXT
}
function luckfox_fdt_overlay() {
#region
local fdt_overlay_dtbo="$1"
local fdt_dtb_size fdt_size fdt_size_hex fdt_hash_data
fdtoverlay -i $LUCKFOX_FDT_DTB -o $LUCKFOX_FDT_DTB "$fdt_overlay_dtbo" >/dev/null 2>&1
fdt_dtb_size=$(ls -la $LUCKFOX_FDT_DTB | awk '{print $5}')
kernel_offset=$(fdtdump $LUCKFOX_FDT_HDR_DTB | grep -A 2 "kernel {" | grep "data-position" | sed -n 's/.*<\(0x[0-9a-fA-F]*\)>.*/\1/p')
fdt_offset=$(fdtdump $LUCKFOX_FDT_HDR_DTB | grep -A 2 "fdt {" | grep "data-position" | sed -n 's/.*<\(0x[0-9a-fA-F]*\)>.*/\1/p')
kernel_offset_dec=$((kernel_offset))
fdt_offset_dec=$((fdt_offset))
result_dec=$((kernel_offset_dec - fdt_offset_dec))
if [ $result_dec -lt "$fdt_dtb_size" ]; then
echo "Kernel will be affected !"
fi
dd if=$LUCKFOX_FDT_DTB of=$LUCKFOX_CHIP_MEDIA bs=1 seek=2048 count="$fdt_dtb_size" >/dev/null 2>&1
# fdt header
if [ ! -f $LUCKFOX_FDT_DTB ]; then
echo "$LUCKFOX_FDT_DTB can't be found!"
return
fi
fdt_size=$(ls -la $LUCKFOX_FDT_DTB | awk '{print $5}')
fdt_size_hex=$(printf "%x\n" "$fdt_size")
fdt_hash_data=$(luckfox_sha256_convert "$(sha256sum $LUCKFOX_FDT_DTB | awk '{print $1}')")
fdt_header_content="
/dts-v1/;
/plugin/;
&{/images/fdt}{
data-size=<0x$fdt_size_hex>;
hash{
value=<$fdt_hash_data>;
};
};
"
echo "$fdt_header_content" >$LUCKFOX_FDT_HDR_OVERLAY_DTS
dtc -I dts -O dtb $LUCKFOX_FDT_HDR_OVERLAY_DTS -o $LUCKFOX_FDT_HDR_OVERLAY_DTBO
if [ ! -f $LUCKFOX_FDT_HDR_OVERLAY_DTBO ]; then
echo "$LUCKFOX_FDT_HDR_OVERLAY_DTBO can't found!"
return
fi
fdtoverlay -i $LUCKFOX_FDT_HDR_DTB -o $LUCKFOX_FDT_HDR_DTB $LUCKFOX_FDT_HDR_OVERLAY_DTBO >/dev/null 2>&1
dd if=$LUCKFOX_FDT_HDR_DTB of=$LUCKFOX_CHIP_MEDIA bs=1 seek=0 count=2048 >/dev/null 2>&1
#endregion
}
# Load the device tree dynamically
function luckfox_load_dynamic_dts() {
local dtbo_node_name
if [ ! -d ${LF_CUSTOM_DTS_PATH}/dtbo/ ]; then
exit 1
#echo "Can't find ${LF_CUSTOM_DTS_PATH}/dtbo dir !"
fi
for dts_file in ${LF_CUSTOM_DTS_PATH}/dtbo/*.dts; do
#Get DTBO name
dtbo_node_name="$(basename "$dts_file" .dts)"
#Check DTBO path
if [ -d "${SYS_OVERLAYS_PATH}/${dtbo_node_name}" ]; then
echo "Node is exist"
continue
fi
#DTS->DTBO
dtc -I dts -O dtb ${LF_CUSTOM_DTS_PATH}/dtbo/${dtbo_node_name}.dts -o \
${LF_CUSTOM_DTS_PATH}/dtbo/${dtbo_node_name}.dtbo
if [ ! -f "${LF_CUSTOM_DTS_PATH}/dtbo/${dtbo_node_name}.dtbo" ]; then
echo "${dtbo_node_name}.dts to dtbo error!"
continue
else
mkdir -p ${SYS_OVERLAYS_PATH}/${dtbo_node_name}
fi
#Load and enable DTBO
cat ${LF_CUSTOM_DTS_PATH}/dtbo/${dtbo_node_name}.dtbo > \
${SYS_OVERLAYS_PATH}/${dtbo_node_name}/dtbo
echo 1 >${SYS_OVERLAYS_PATH}/${dtbo_node_name}/status
rm ${LLF_CUSTOM_DTS_PATH}/dtbo/${dtbo_node_name}.dtbo
done
}
#Overwrite the disk device tree (requires restart)
function luckfox_load_static_dts() {
local dtbo_node_name
if [ ! -d ${LF_CUSTOM_DTS_PATH}/fdt_overlay/ ]; then
echo "Can't find ${LF_CUSTOM_DTS_PATH}/fdt_overlay dir!"
fi
for dts_file in ${LF_CUSTOM_DTS_PATH}/fdt_overlay/*.dts; do
#Get DTBO name
dtbo_node_name="$(basename "$dts_file" .dts)"
#DTS->DTBO
dtc -I dts -O dtb ${LF_CUSTOM_DTS_PATH}/fdt_overlay/${dtbo_node_name}.dts -o \
${LF_CUSTOM_DTS_PATH}/fdt_overlay/${dtbo_node_name}.dtbo
if [ ! -f "${LF_CUSTOM_DTS_PATH}/fdt_overlay/${dtbo_node_name}.dtbo" ]; then
echo "${dtbo_node_name}.dts to dtbo error!"
continue
fi
# load to disk
luckfox_update_fdt
luckfox_fdt_overlay ${LF_CUSTOM_DTS_PATH}/fdt_overlay/${dtbo_node_name}.dtbo
rm ${LUCKFOX_FDT_OVERLAY_DTBO}
done
}
case $1 in
start)
luckfox_load_dynamic_dts
;;
stop)
luckfox_tools_check
luckfox_load_static_dts
;;
*)
exit 1
;;
esac
S99python
运行python脚本
#!/bin/sh
#
# python Starts python code.
#
# Make sure the python progam exists
[ -f /usr/bin/python ] || exit 0
umask 077
main_path="/root/main.py"
boot_path="/root/boot.py"
start() {
# Run python progam
if [ -f $main_path ]; then
echo "running $main_path..."
python $main_path
else
if [ -f $boot_path ]; then
echo "running $boot_path..."
python $boot_path
else
echo "$main_path and $boot_path not exist ,pass..."
fi
fi
echo "OK"
}
stop() {
printf "Stopping python: "
killall python
echo "OK"
}
restart() {
stop
start
}
case "$1" in
start)
start
;;
stop)
stop
;;
restart|reload)
restart
;;
*)
echo "Usage: $0 {start|stop|restart}"
exit 1
esac
exit $?
S99rtcinit
RTC时间校准
#!/bin/sh
case $1 in
start)
if [ "$(hwclock | grep "1969")" ]; then
echo "RTC time calibration"
date -s 2024-01-01
hwclock -w
else
echo "RTC does not require time calibration"
fi
;;
*)
exit 1
;;
esacS99usb0config
USB相关配置，配置IP等等
#!/bin/sh
TARGET_IP="172.32.0.93"
USB_KEYWORD="android_work: sent uevent USB_STATE="
USB_MODE_PATH="/proc/device-tree/usbdrd/usb@ffb00000/dr_mode"
MAX_RETRIES=10
retries=0
usb0_config() {
if [ "$(cat /proc/device-tree/usbdrd/usb@ffb00000/dr_mode)" == "peripheral" ]; then
current_ip=$(ifconfig usb0 | grep -o 'inet addr:[^ ]*' | awk -F ':' '{print $2}')
echo "current_ip = $current_ip"
echo "TARGET_IP = $TARGET_IP"
while [[ "$current_ip" != "$TARGET_IP" && $retries -lt $MAX_RETRIES ]]; do
sleep .5
echo "luckfox : set usb0 ip"
ifconfig usb0 "$TARGET_IP"
current_ip=$(ifconfig usb0 | grep -o 'inet addr:[^ ]*' | awk -F ':' '{print $2}')
echo $current_ip
retries=$((retries + 1))
done
if [[ "$current_ip" != "$TARGET_IP" ]]; then
echo "usb0 config error"
else
echo "usb0 config success"
fi
else
echo "usb0 is using host mode"
fi
}
usb_reset() {
while true; do
last_line=$(dmesg | grep "$USB_KEYWORD" | tail -n 1)
if [[ "$last_line" == *"DISCONNECTED"* ]]; then
echo "Detected USB DISCONNECTED."
/etc/init.d/S50usbdevice restart
usb0_config
#elif [[ "$last_line" == *"CONFIGURED"* ]]; then
# echo "Detected CONFIGURED. No action required."
#else
# echo "No relevant USB_STATE found."
fi
sleep 5
done
}
case $1 in
start)
# check peripheral
usb_mode="$(cat $USB_MODE_PATH)"
if [ "$usb_mode" = "peripheral" ]; then
usb0_config
usb_reset &
fi
;;
stop) ;;
*)
exit 1
;;
esac自定义启动流程
#!/bin/sh
network_init() {
#提取HWaddr 地址
ethaddr1=$(ifconfig -a | grep "eth.*HWaddr" | awk '{print $5}')
#如果文件存在则比对mac地址是否一样，不一样则重新设置
if [ -f /data/ethaddr.txt ]; then
ethaddr2=$(cat /data/ethaddr.txt)
if [ $ethaddr1 == $ethaddr2 ]; then
echo "eth HWaddr cfg ok"
else
ifconfig eth0 down
ifconfig eth0 hw ether $ethaddr2
fi
#文件不存在则将获取到的mac地址写入到文件中
else
echo $ethaddr1 >/data/ethaddr.txt
fi
#启动网络并固定IP地址
ifconfig eth0 up
ifconfig eth0 192.168.3.24 netmask 255.255.252.0
route add default gw 192.168.3.1
echo "nameserver 114.114.114.114" > /etc/resolv.conf
}
insert_ko() {
# if ko exist, install ko first
default_ko_dir=/ko
#加载驱动
if [ -f "/oem/usr/ko/insmod_ko.sh" ]; then
default_ko_dir=/oem/usr/ko
fi
if [ -f "$default_ko_dir/insmod_ko.sh" ]; then
cd $default_ko_dir && sh insmod_ko.sh && cd -
fi
}
/etc/init.d/S01seedrng start
/etc/init.d/S01syslogd start
/etc/init.d/S02klogd start
/etc/init.d/S02sysctl start
/etc/init.d/S10udev start
/etc/init.d/S20linkmount start
/etc/init.d/S20urandom start
#加载驱动
insert_ko &
#初始化网络
network_init &
/etc/init.d/S40network
/etc/init.d/S50sshd start
/etc/init.d/S91smb start幸狐SDK学习
luckfox_pico_rkmpi_example
编译
#设置环境变量
# uclibc
export LUCKFOX_SDK_PATH=<luckfox-pico SDK path>
# glibc
export GLIBC_COMPILER=<gcc bin path>/arm-linux-gnueabihf-
执行./build.sh
评论已关闭
